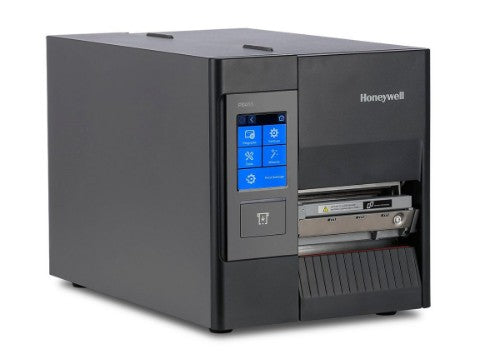

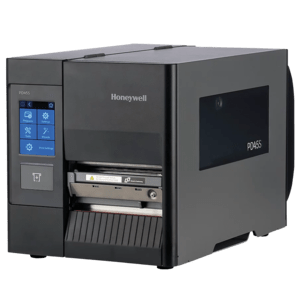

Honeywell PD45S0C label printer Direct thermal / Thermal transfer 203 x 203 DPI 250 mm/sec Wired Ethernet LAN
MPN:
Condition:
Couldn't load pickup availability
Description
Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure, PD45S is sturdy and durable. This gives our printer a tough, compact, and sleek appearance, suitable for use in a wide range of settings & applications.The PD45S runs on Arm Cortex-A7 / 800Mhz processor, 128M memory and 128M DDR3 SDRAM. It features a sophisticated industrial print head which supports both direct thermal and thermal transfer printing modes. Honeywell’s patented dual sensor positioning technology supports a dynamic positioning function that ensures a minimum label height of 5mm and vertical position accuracy of 0.5mm. Two sets of adjustable pressure bars and double media guides ensures accurate paper feeding and help to avoid ribbon wrinkles & printing dirt.
Thanks to a very ergonomic design, the print head can be easily switched out and replaced. The front sensor that ensures accurate printing can also be easily removed to facilitate cleaning and replacement of the rubber roller. The PD45S supports multiple printer command languages such as FP/DP/IPL/ZPL/DPL, one-key installation of printer driver and easy windows configuration.
The PD45S comes with a rich selection of accessories and supports wireless network interface card, parallel interface card, labeling machine interface card, industrial GPIO and serial interface card. It also has peeling, rewinding and cutting assemblies to cope with a wide range of application scenarios.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 10.8 cm |
| Printing | |
| Minimum print length | 4.8 m |
| Colour | No |
| Print speed | 250 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 10.8 cm |
| Print technology | Direct thermal / Thermal transfer |
| Display | |
| Display diagonal | 6.6 cm (2.6") |
| Display | LCD |
| Network | |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Paper handling | |
| Ribbon width | 11 cm |
| Ribbon length | 450 m |
| Maximum roll diameter | 8 cm |
| Ports & interfaces | |
| RS-232 ports | 1 |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Ribbon width | 11 cm |
| Ribbon length | 450 m |
| Internal memory | 128 MB |
| Flash memory | 128 MB |
| Design | |
| Display diagonal | 6.6 cm (2.6") |
| Display | LCD |
| Product colour | Black |
| Built-in display | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Technical details | |
| Product colour | Black |
| Ribbon width | 11 cm |
| Ribbon length | 450 m |
| Harmonized System (HS) code | 84433210 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Weight & dimensions | |
| Width | 249 mm |
| Depth | 438 mm |
| Height | 270 mm |
| Weight | 9.25 kg |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
