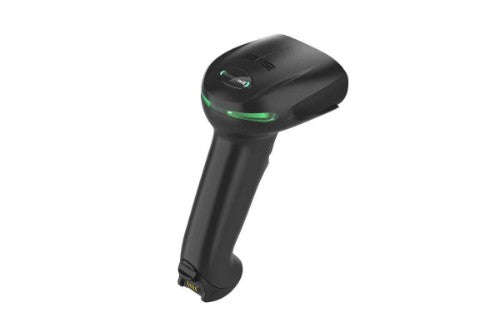

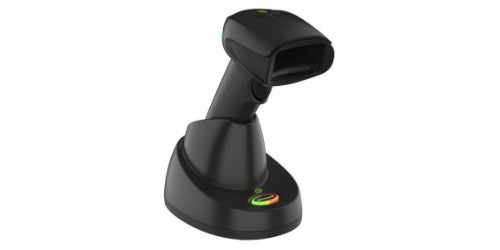

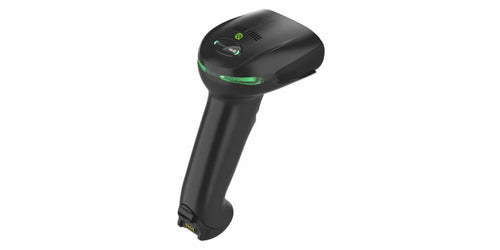

Honeywell Xenon 1952G Handheld bar code reader 1D/2D Black

1D/2D, 400 cm/s, IP52, 104 x 71 x 160 mm

Key Features

• When fully charged, the scanner can typically scan over 450 UPC/EAN codes without the need for recharging – more than enough to check out 25 customers
• Supercapacitors hold their charge for hours when fully charged. So operators who forget to place their scanner in the charger prior to break won’t impact operations upon return
• Two independently configurable recharge alerts remind the operator to place the scanner back into the base for charging, ensuring continuous operation
• The Xenon XP 1952g-bf scanner is fully charged in under two minutes with a simple USB connection, and under 30 seconds when a powered USB or external power supply is used
• When the scanner is placed in the base, the ready-toscan LED typically flashes in less than 20 seconds to notify the operator that there is sufficient power to support over 100 scans

Description

The Honeywell Xenon™ Extreme Performance (XP) 1952g-bf area-imager scanner is Honeywell’s latest barcode scanner powered by supercapacitors – eliminating the battery for a green, environmentally friendly scanner. This powerhouse solution is capable of scanning over 450 barcodes on a single charge, and can be recharged in less than 60 seconds via a powered USB port.

The Honeywell Xenon™ Extreme Performance (XP) 1952g-bf area-imager scanner incorporates the latest in battery-free technology, offering the freedom of Bluetooth® low-energy wireless technology without the maintenance hassles or long recharge time associated with traditional batteries. Like all other Xenon scanners, the Xenon XP 1952g-bf scanner delivers aggressive barcode scanning performance – even on poor-quality or damaged barcodes.An integrated Bluetooth low-energy Class 2 radio gives users complete freedom of movement up to 10 meters (33 feet) from the base in a typical work environment. For added convenience, a paging system on the base activates auditory signals that help to locate a misplaced scanner. By eliminating the trip-hazard of tethered cables, the Xenon XP 1952g-bf scanner can provide a safer and more productive environment.The scanner’s wireless technology completely eliminates the battery, replacing it with supercapacitors capable of achieving a full charge in less than two minutes via the USB port (under 30 seconds when using a powered USB port or external wall adapter) and typically providing at least 450 scans on UPC/EAN codes without recharging. This makes the Xenon XP 1952g-bf scanner ideal for applications centered around POS, workstations, and counters – for example, as the secondary scanner to a bioptic (in-counter) scanner, or in support of shipping and receiving functions at warehouses. With no battery, a common maintenance hassle is removed and the scanner is lighter and more environmentally friendly.Built on the proven Xenon platform, the Xenon XP 1952g-bf scanner offers high-performance linear barcode scanning and the convenience of wireless – all without a battery.

Specifications

Scanning
Type	Handheld bar code reader
Linear (1D) barcodes supported	Code 128, Code 39, PDF417, U.P.C.
2D (matrix & stacked) barcodes supported	Data Matrix, PDF417, QR Code
Yaw reading angle	-65 - 65°
Tilt reading angle	-360 - 360°
Scanner type	1D/2D
Pitch reading angle	-45 - 45°
Light levels (direct sunlight)	0 - 100000 lx
Optical sensor resolution (W x H)	1280 x 800 pixels
Ports & interfaces
Wireless range	10 m
Connectivity technology	Wired & Wireless
Bluetooth version	4.2
Operating frequency	2400 MHz
Cable length	3 m
Standard interfaces	Bluetooth, USB
Performance
Protection features	Bump resistant, Drop proof
LED indicators	Yes
International Protection (IP) code	IP52
Product colour	Black
Buzzer	Yes
Print contrast	15%
Light levels (direct sunlight)	0 - 100000 lx
Design
Type	Handheld bar code reader
Protection features	Bump resistant, Drop proof
LED indicators	Yes
International Protection (IP) code	IP52
Product colour	Black
Power
Power source type	Battery
Charging time	0.25 h
Number of reads per charge	490
Battery technology	Lithium-Ion (Li-Ion)
Weight & dimensions
Width	71 mm
Depth	104 mm
Height	160 mm
Weight	195 g
Presentation base dimensions (WxDxH)	132 x 102 x 81 mm
Technical details
Type	Handheld bar code reader
Protection features	Bump resistant, Drop proof
LED indicators	Yes
International Protection (IP) code	IP52
Product colour	Black
Buzzer	Yes
Harmonized System (HS) code	84716070
Packaging data
Cables included	USB
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Light levels (direct sunlight)	0 - 100000 lx
Packaging content
Cables included	USB
Logistics data
Harmonized System (HS) code	84716070
