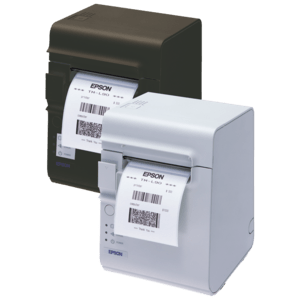

Epson C31C412682 label printer Direct thermal 203 x 203 DPI 90 mm/sec Wired

Thermal Line, 90 mm/sec, 203 x 203 DPI, USB 2.0 Type B, RS-232, 4 kB

Key Features

• Built-in taken sensor: Automatic next label printing
• Media flexibility: 1.5-inch, 2-inch or 3-inch media widths
• Speed: Print speeds of up to 170mm/sec
• Paper-saving: Improved paper reduction function
• Easy installation: Three mounting positions

Description

Fast liner-free label printing for hospitality and retail

This thermal label printer has been developed for fast-food retail chains, restaurants, food delivery services, and logistics. The TM-L90LF liner-free thermal label printer benefits users by providing cost-effective, fast and reliable technology. It's also compatible with liner-free adhesive media.

Cost efficient
As the TM-L90LF prints both liner-free labels and receipts in order to improve the user's operational efficiency and total cost of ownership (TCO). As the printer works with adhesive-backed media, users are able to accurately label food and drink orders - thereby increasing customer satisfaction and user accuracy.

Order processing speed
With print speeds of up to 170mm/sec, the potential benefits to the user are clear: fast order (and checkout) processing, faster drive-through services and improved customer satisfaction.

Built-in taken sensor
The next label prints automatically as the printed one is taken.

Flexible installation
Users can position the printer in the most convenient spot, thanks to a choice of vertical, horizontal or wall-mounted (using optional bracket) installation.

Saves paper
The TM-L90LF features improved paper reduction functionality that includes back feed capability, line feed adjustment and a smaller sized font. It can be set up to cut through adhesive areas, which saves paper. To further reduce paper consumption, the automatic top margin reduction function prints the top of the next receipt before cutting the current one when printing continues after auto cutting. It supports 1.5-inch, 2-inch or 3-inch media widths.

Specifications

Print quality
Maximum resolution	203 x 203 DPI
Printing
Print speed	90 mm/sec
Maximum resolution	203 x 203 DPI
Print technology	Direct thermal
Printing characters	Text, Graphic
Memory
Buffer size	4 KB
Paper handling
Supported paper width	80 mm
Maximum roll diameter	10.2 cm
Autocutter durability	1 million cuts
Half-cutter	Yes
Ports & interfaces
Connectivity technology	Wired
USB port	Yes
Performance
Mean time between failures (MTBF)	360000 h
Mean cycles between failures (MCBF)	35000000
Character sets	ANK
Certification	VCCI-Class A, CE
Cutter	Yes
Design
Product colour	Grey
Certification	VCCI-Class A, CE
Power
Power consumption	1800 mA
AC input voltage	24 V
Technical details
Product colour	Grey
Safety	TÜV
Mean time between failures (MTBF)	360000 h
Mean cycles between failures (MCBF)	35000000
Country of origin	China
Character sets	ANK
Products per pallet	112 pc(s)
Cutter	Yes
Products per pallet (UK)	168 pc(s)
Harmonized System (HS) code	84433210
Certificates
Certification	VCCI-Class A, CE
Operational conditions
Storage temperature (T-T)	-10 - 50 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Package width	195 mm
Package depth	255 mm
Package height	240 mm
Width	140 mm
Depth	148 mm
Height	203 mm
Weight	1.9 kg
Package weight	2.76 kg
Packaging data
Package width	195 mm
Package depth	255 mm
Package height	240 mm
Package weight	2.76 kg
Quantity per pack	1 pc(s)
Packaging content
Manual	Yes
Quantity per pack	1 pc(s)
Other features
Products per pallet	112 pc(s)
Quantity per pack	1 pc(s)
Safety	TÜV
Country of origin	China
Character sets	ANK
Buffer size	4 KB
Logistics data
Products per pallet	112 pc(s)
Products per pallet (UK)	168 pc(s)
Harmonized System (HS) code	84433210
