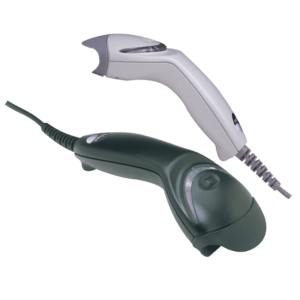

Honeywell MS5145 Eclipse 1D Grey
MPN:
Condition:
Couldn't load pickup availability
Description
The MS5145 Eclipse™ is a single-line, hand-held laser scanner. Honeywell’s patented CodeGate® technology allows the user to easily target the desired bar code and complete data transmission with a simple press of a button, making Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control.- CodeGate®: Ideal for menu scanning applications
- CodeSense®: Automatically switches from “pulse mode” to continuous beaming when a bar code is detected
- Powerlink cables: Uses the same user-replaceable cables and power supplies as Voyager®, Orbit® and Cubit®
- Flash ROM: Update firmware from any PC via MetroSet2® software provided by Metrologic
- OPOS and JPOS system compatible: Easily adaptable to any end-user system environment.
Specifications
| Scanning | |
|---|---|
| Wavelength | 650 nm |
| Scanner type | 1D |
| Read rate (max) | 72 reads/s |
| Light levels (direct sunlight) | 0 - 4842 lx |
| Ports & interfaces | |
| Standard interfaces | USB |
| Performance | |
| Product colour | Grey |
| Certification | FCC Part 15, ICES-003, EN55022 Class B |
| Light levels (direct sunlight) | 0 - 4842 lx |
| Design | |
| Product colour | Grey |
| Certification | FCC Part 15, ICES-003, EN55022 Class B |
| Power | |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 63 mm |
| Depth | 169 mm |
| Height | 51 mm |
| Weight | 100 g |
| Technical details | |
| Dimensions (WxDxH) | 63 x 169 x 51 mm |
| Product colour | Grey |
| Certification | FCC Part 15, ICES-003, EN55022 Class B |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Light levels (direct sunlight) | 0 - 4842 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Other features | |
| Dimensions (WxDxH) | 63 x 169 x 51 mm |
