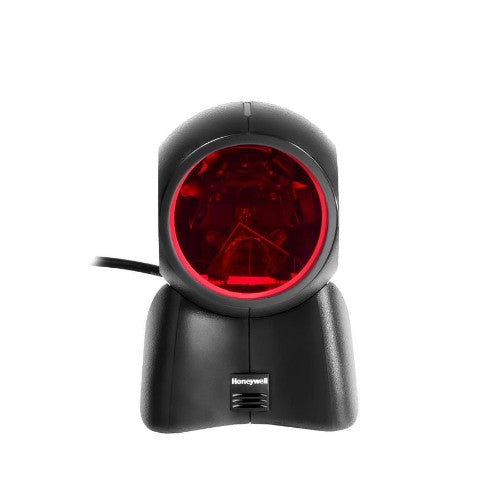

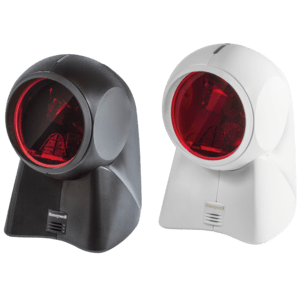

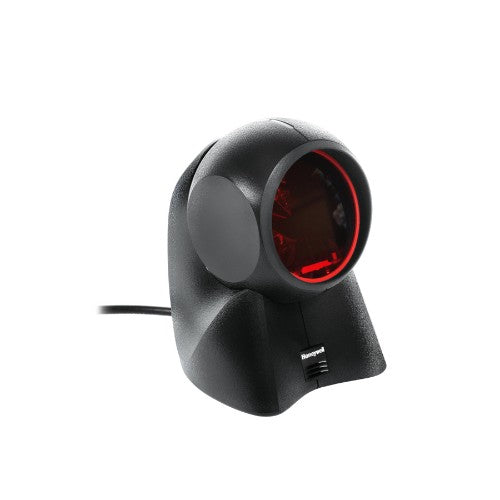

Honeywell Orbit 7190g Handheld bar code reader 1D/2D Laser Black
MPN:
Condition:
Couldn't load pickup availability
Description
The Orbit™ 7190g scanner incorporates breakthrough hybrid technology that combines omnidirectional laser scanning and integrated area-imaging to provide a barcode reading platform optimized for highly efficient checkouts. Like other Orbit scanners, it delivers superior pass-through scanning of merchandise linear barcodes, while simultaneously helping retailers address the growing need for digital barcodes reading – without requiring an additional scanner.Like other Orbit scanners – the best-selling hands-free scanners of all time – the Orbit 7190g scanner is an innovative, elegant and affordable solution for convenience retail applications where counter space is at a premium. The award-winning shape enables handheld scanning of large, bulky items. For added flexibility, the scanning head can be tilted within a 30° range to accommodate objects of various sizes and shapes.
The Orbit 7190g scanner seamlessly works for both merchandise scanning by the cashier, and digital barcodes scanning off smartphones by customers. With the dual-modes design, the scanner is automatically optimized for both applications while eliminating the customer annoyance of a laser and LED illumination.
The Orbit 7190g is a plug-and-play scanner, and installing it into existing checkout systems is easy. Multiple on-board interfaces make the Orbit 7190g scanner compatible with most POS systems, and automatic interface detection enables the scanner to configure itself to the appropriate interface upon connection – eliminating the cumbersome task of scanning programming barcodes. The Orbit 7190g scanner also simplifies integration by drawing power directly through USB, eliminating the need for an additional power supply and cabling.
FEATURES & BENEFITS
- The Orbit 7190g scanner integrates both a laser and an imager into a single presentation scanner – no need to buy a separate scanner for digital barcode reading, while maintaining superior merchandise barcode scanning.
- With dual-working modes, the scanner is optimized for both scanning digital codes off customer smartphones and scanning merchandise codes by the cashier at the register.
- A 20-line omnidirectional laser pattern maintains the proven 1D scanning performance of existing Orbit scanners. With leading Honeywell imaging technology, the scanner reads smartphone coupons and ID cards with ease.
- The award-winning shape enables handheld scanning of large, bulky items. The adjustable scan head even allows cashiers to tilt the scanner 30° for targeted scanning of larger products.
- Automatic interface detection enables the scanner to configure itself to the appropriate interface upon connection – eliminating the tedious task of scanning programming barcodes.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Code 39, GS1 DataBar Omnidirectional, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Data Matrix, PDF417, QR Code |
| Yaw reading angle | 0 - 70° |
| Working distance | 32.7 cm |
| Sensor type | Laser |
| Scanner type | 1D/2D |
| Read rate (max) | 1120 reads/s |
| Pitch reading angle | 0 - 60° |
| Light levels (direct sunlight) | 4842 - 100000 lx |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | Keyboard wedge, RS-232, RS-485, USB |
| Performance | |
| LED indicators | Status |
| Built-in display | No |
| Product colour | Black |
| Certification | CE, RoHS |
| Light levels (direct sunlight) | 4842 - 100000 lx |
| Design | |
| Type | Handheld bar code reader |
| LED indicators | Status |
| Product colour | Black |
| Certification | CE, RoHS |
| Power | |
| Power consumption | 472 mA |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 108 mm |
| Depth | 103 mm |
| Height | 148 mm |
| Weight | 410 g |
| Technical details | |
| Type | Handheld bar code reader |
| LED indicators | Status |
| Built-in display | No |
| Product colour | Black |
| Certification | CE, RoHS |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Packaging data | |
| Cables included | USB |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Light levels (direct sunlight) | 4842 - 100000 lx |
| Packaging content | |
| Cables included | USB |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
