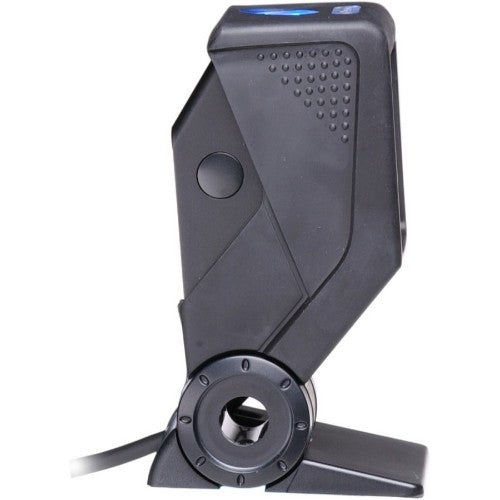

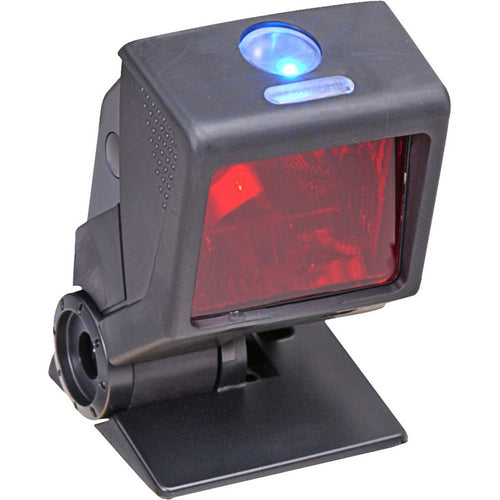

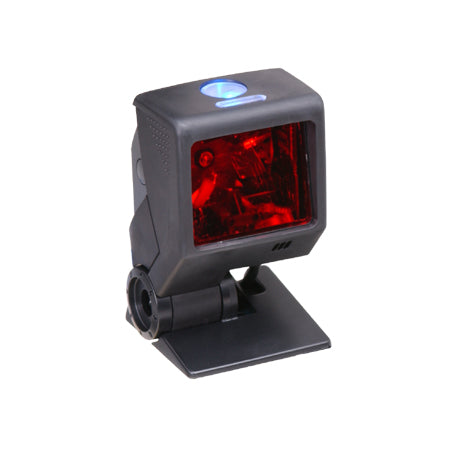

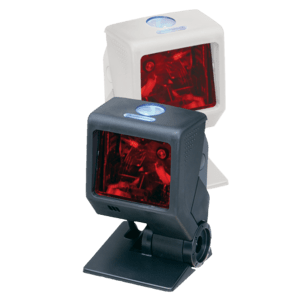

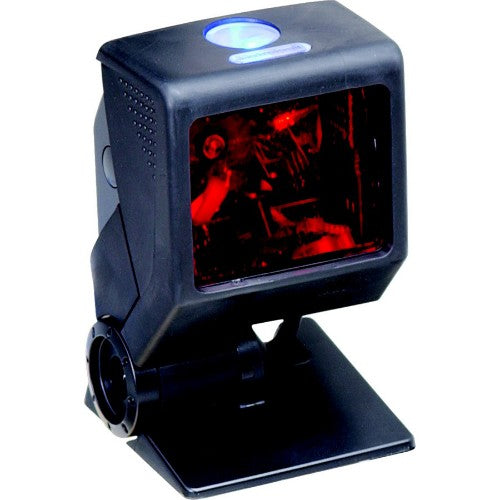

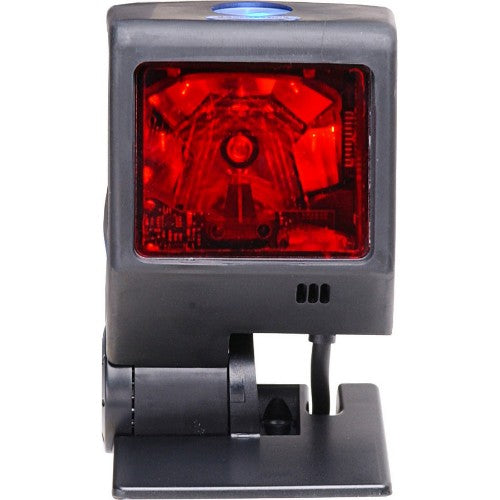

Honeywell MS3580 Quantum T Fixed bar code reader Laser Black
MPN:
Condition:
Couldn't load pickup availability
Description
The MS3580 QuantumT provides retailers with industry-leading omnidirectional scan performance and optional single-line scanning in a compact form factor. Patented CodeGate technology saves time and reduces unwanted scans by offering a single-line mode for scanning menu-style codes. A small footprint and numerous stand options minimize required counter space, increasing available room for merchandise and advertisement displays.Specifications
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| Linear (1D) barcodes supported | GS1-128 (UCC/EAN-128) |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Yaw reading angle | 0 - 60° |
| Wavelength | 650 nm |
| Tilt reading angle | 0 - 360° |
| Sensor type | Laser |
| Pitch reading angle | 0 - 60° |
| Maximum scan width | 27.9 cm |
| Light levels (direct sunlight) | 0 - 4842 lx |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Performance | |
| Product colour | Black |
| Certification | IEC60825-1, EN60825-1, FCC, ICES, EN55022 |
| Buzzer | Yes |
| Light levels (direct sunlight) | 0 - 4842 lx |
| Design | |
| Type | Fixed bar code reader |
| Product colour | Black |
| Certification | IEC60825-1, EN60825-1, FCC, ICES, EN55022 |
| Power | |
| Power source type | AC |
| Power consumption (typical) | 1.4 W |
| Power consumption (standby) | 1.2 W |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 67 mm |
| Depth | 66 mm |
| Height | 108 mm |
| Weight | 170 g |
| Technical details | |
| Type | Fixed bar code reader |
| Product colour | Black |
| Certification | IEC60825-1, EN60825-1, FCC, ICES, EN55022 |
| Buzzer | Yes |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | -20 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Light levels (direct sunlight) | 0 - 4842 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
