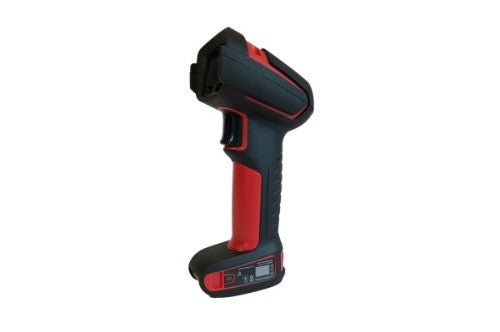

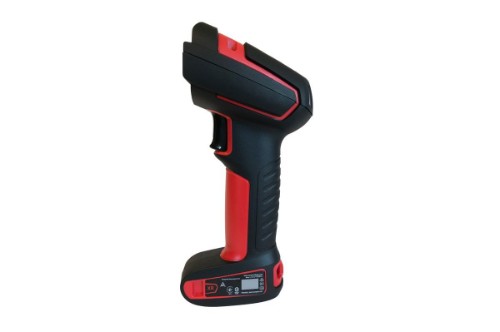

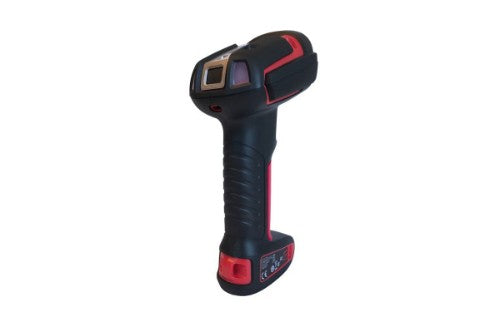

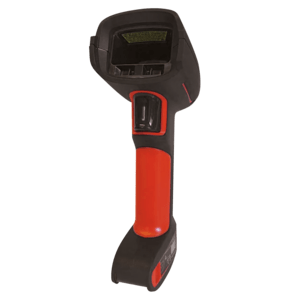

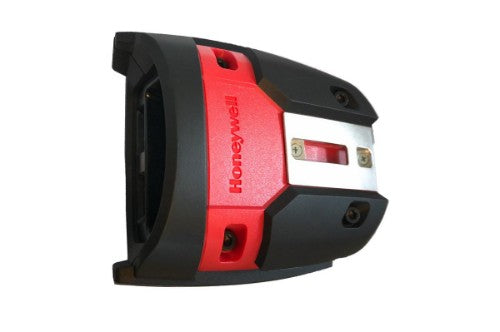

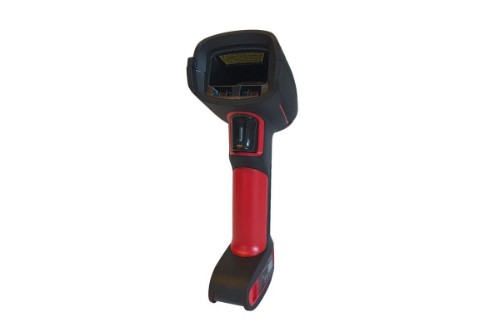

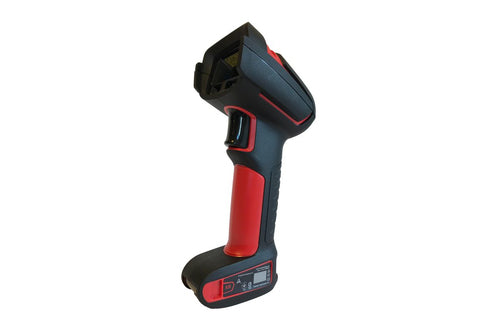

Honeywell Granit 1990iSR Handheld bar code reader 1D/2D LED Black, Red
MPN:
Condition:
Couldn't load pickup availability
Description
Following a legacy of successful deployments, the next generation Granit™ XP scanners expand capabilities and redefine ultra-rugged scanning. With a best-in-class 10’ drop spec, Granit™ XP is engineered to keep on working after the impact of drops from loading docks, fork trucks, and picking trucks. The 1 meter (3.3 foot) tumble test indicates long term durability with daily knocks and drops from workstation or waist height. A best-in-class 7,000 tumble specification ensures Granit™ scanners will be ready to work for the long term. And IP67 dust and moisture sealing protect scanning performance under harsh treatment.Barcodes make data entry faster and more accurate, maximizing productivity in your operations. However, damaged and low quality barcodes can make transactions slow and painful. Bad labels commonly occur in the warehouse/DC and industrial space due to low quality printing or damage during handling. Granit XP, built on Honeywell’s next-generation imaging platform, ensures that otherwise challenging labels do not create a bottleneck in your process. The Granit™ XP 1990iSR model offers high-durability, extreme performance scanning for standard range operations. Created for applications where high speed scanning is needed to maximize productivity, and where durability is non-negotiable for low total cost of ownership, the Granit™ XP 1990iSR scanner offers the optimal solution.
Find out more about what you can accomplish with Granit XP
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | PDF417, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported | Code 39, Data Matrix, PDF417, QR Code |
| Yaw reading angle | -65 - 65° |
| Sensor type | LED |
| Scanner type | 1D/2D |
| Pitch reading angle | -45 - 45° |
| Light levels (direct sunlight) | 0 - 100 lx |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | Keyboard wedge, RS-232, USB |
| Performance | |
| International Protection (IP) code | IP67 |
| Product colour | Black, Red |
| Light levels (direct sunlight) | 0 - 100 lx |
| Design | |
| Type | Handheld bar code reader |
| International Protection (IP) code | IP67 |
| Product colour | Black, Red |
| Power | |
| Power source type | DC |
| Power consumption (typical) | 2.35 W |
| Power consumption (standby) | 0.5 W |
| Input voltage | 4 - 5.5 V |
| Weight & dimensions | |
| Width | 76 mm |
| Depth | 192 mm |
| Height | 100 mm |
| Weight | 320 g |
| Technical details | |
| Type | Handheld bar code reader |
| International Protection (IP) code | IP67 |
| Product colour | Black, Red |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -30 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Light levels (direct sunlight) | 0 - 100 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
Honeywell Granit 1990iSR Handheld bar code reader 1D/2D LED Black, Red
