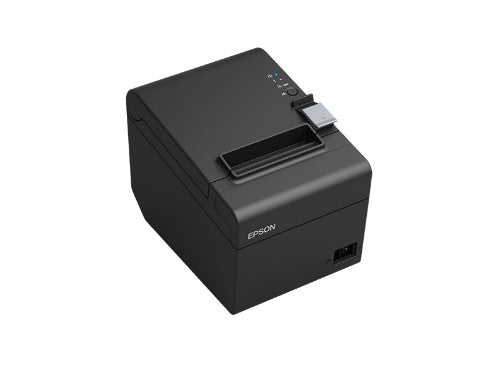

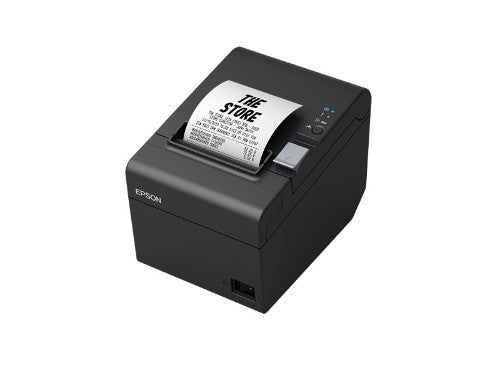

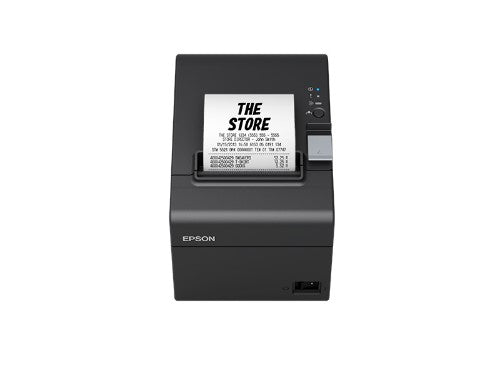

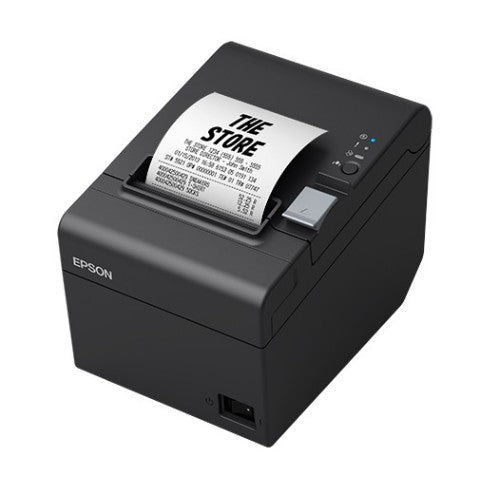

Epson TM-T20III (011A0) 203 x 203 DPI Wired Direct thermal POS printer

Thermal line, 250mm/sec, 203 x 203 DPI, USB 2.0 Type B, RS-232

Description

This entry-level thermal POS receipt printer provides a cost-effective POS solution with fast print speeds and economical features. The combination of its fast print speeds, high reliability and economical operation, make this printer a must-have for small retail and speciality stores, hospitality venues and grocery stores. Affordable This easy-to-use model is our entry-level POS receipt printer and has an 80mm printing width. Its Automatic Paper Reduction feature reduces top and bottom margins, line feed width and barcode height, allowing for flexible receipt printing. This monitors and controls the amount of paper used. Paper costs are minimised by printing the top logo of the next receipt before cutting, so the top margin is further reduced by 12mm. Reliable With the mean time between failures (MTBF) of 360,000 hours and a mechanism life of 15 million lines, you can rely on the TM-T20III in high-volume printing environments. Flexible The TM-T20III comes with a built-in USB interface. You can select from two models: 1) USB + Serial, 2) Ethernet, making the model a long-term investment as it is possible to switch connectivity at any time. Fast Its print speed of 250mm/sec can save you time and its competitive price and running costs can save you money; ideal for when you need to beat queues quickly.

Specifications

Printing
Colour	No
Character sets	ANK
Type	POS printer
Print technology	Direct thermal
Print speed	250 mm/sec
Maximum resolution	203 x 203 DPI
Character density	22.6 cpi
Print speed (receipt)	250 mm/sec
Printing characters	Text, Graphic, Barcode
Performance
Character sets	ANK
Type	POS printer
Print technology	Direct thermal
Print speed	250 mm/sec
Maximum resolution	203 x 203 DPI
Character density	22.6 cpi
Paper handling
Supported paper width	80 mm
Maximum roll diameter	8.3 cm

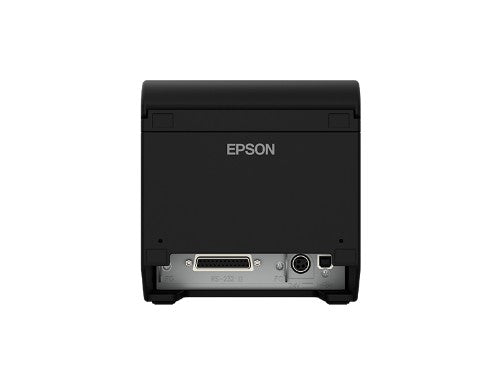

Ports & interfaces
Standard interfaces	RS-232, USB 2.0
Connectivity technology	Wired
USB port	Yes
USB connector	USB Type-B
Serial interface	Yes
Serial interface type	RS-232
Print technology
Type	POS printer
Print technology	Direct thermal
Print speed	250 mm/sec
Character density	22.6 cpi
Column capacity	48/64
Print quality
Maximum resolution	203 x 203 DPI
Technical details
Mean cycles between failures (MCBF)	60000000
Character sets	ANK
Built-in sensors details	Paper End Sensor, Paper Near End Sensor
Product colour	Black
Buffer size	4 KB
Autocutter durability	1.5 million cuts
Products per pallet	112 pc(s)
Cutter	Yes
Print head life	150.000.000 Impulse
Quantity per pack	1 pc(s)
Master (outer) case width	400 mm
Master (outer) case length	490 mm
Master (outer) case height	295 mm
Country of origin	Philippines
Products per pallet layer (UK)	24 pc(s)
Products per pallet layer	16 pc(s)
Products per pallet (UK)	168 pc(s)
Products per master (outer) case	4 pc(s)
Colour	No
Lifetime	15000000 lines
Harmonized System (HS) code	84433210
Features
Mean cycles between failures (MCBF)	60000000
Character sets	ANK
Built-in sensors details	Paper End Sensor, Paper Near End Sensor
Safety	UL, CSA, TÜV
Mean time between failures (MTBF)	360000 h
Product colour	Black
Certification	FCC-Class A, CE, EN55022-Class A
Autocutter durability	1.5 million cuts
Sound pressure level (printing)	55 dB
Cutter	Yes
Print head life	150 km
Country of origin	Philippines
Wall mountable	Yes
Mounting position	Horizontal/Vertical
Half-cutter	Yes
Paper save function	Yes
Design
Product colour	Black
Memory
Buffer size	4 KB
Endurance
Mean time between failures (MTBF)	360000 h
Power
AC input voltage	24 V
Power consumption	1800 mA
Power consumption (standby)	100 mA
Operational conditions
Storage temperature (T-T)	-10 - 50 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Certificates
Safety	UL, CSA, TÜV
Certification	FCC-Class A, CE, EN55022-Class A
Weight & dimensions
Width	140 mm
Depth	199 mm
Height	146 mm
Package width	192 mm
Package depth	335 mm
Package height	280 mm
Package weight	2.2 kg
Weight	1.7 kg
Packaging data
Package width	192 mm
Package depth	335 mm
Package height	280 mm
Package weight	2.2 kg
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
AC adapter included	Yes
Logistics data
Products per pallet	112 pc(s)
Master (outer) case width	400 mm
Master (outer) case length	490 mm
Master (outer) case height	295 mm
Products per pallet layer (UK)	24 pc(s)
Products per pallet layer	16 pc(s)
Products per pallet (UK)	168 pc(s)
Products per master (outer) case	4 pc(s)
Other features
Mean cycles between failures (MCBF)	60000000
Buffer size	4 KB
Print head life	150.000.000 Impulse
Print head life	150 km
