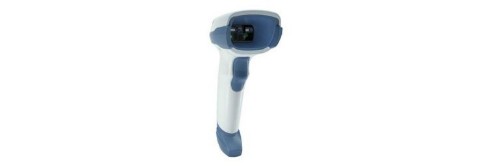

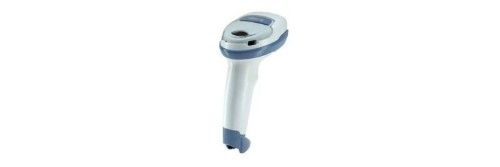

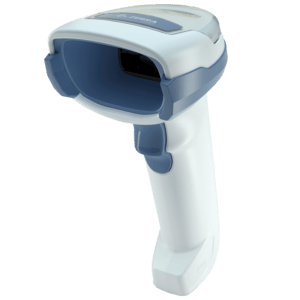

Zebra DS2208-HC Handheld bar code reader 1D/2D LED White
MPN:
Condition:
Couldn't load pickup availability
Description
IMPROVE PATIENT SAFETY AND CLINICIAN PRODUCTIVITYPurpose-built for healthcare, you get an affordable imager that doesn’t compromise performance or features for price. Capture the many kinds of barcodes commonly used in hospitals—from barcodes on patient wristbands and medication vials to IV bags and specimen trays. Pre-configured and ready to use right out of the box, the scanner is configured for the healthcare applications you use every day, while auto-host detect cables automatically select the right host interface—just plug in the scanner and you’re ready to go.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, MSI, U.P.C., UPC-A, UPC-E |
| Yaw reading angle | 0 - 65° |
| Wavelength | 624 nm |
| Tilt reading angle | 0 - 360° |
| Sensor type | LED |
| Scanner type | 1D/2D |
| Pitch reading angle | 0 - 65° |
| Light levels (direct sunlight) | 0 - 107600 lx |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | Keyboard wedge, RS-232, USB |
| Performance | |
| LED indicators | Yes |
| International Protection (IP) code | IP52 |
| Product colour | White |
| Certification | RoHS EN 50581, EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/ CSA-C22.2 No. 60950-1-07, IEC 62471, EN 55032 (Class B), EN 55024, EN 61000-3-2, EN 61000-3-3, 47 CFR Part 15, Subpart B, Class B, ICES-003 Issue 6, Class B |
| Buzzer | Yes |
| Light levels (direct sunlight) | 0 - 107600 lx |
| Design | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP52 |
| Product colour | White |
| Certification | RoHS EN 50581, EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/ CSA-C22.2 No. 60950-1-07, IEC 62471, EN 55032 (Class B), EN 55024, EN 61000-3-2, EN 61000-3-3, 47 CFR Part 15, Subpart B, Class B, ICES-003 Issue 6, Class B |
| Power | |
| Power source type | RS-232, USB |
| Input voltage | 4.5 - 5.5 V |
| Weight & dimensions | |
| Width | 66 mm |
| Depth | 99 mm |
| Height | 165 mm |
| Weight | 161.6 g |
| Technical details | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP52 |
| Product colour | White |
| Certification | RoHS EN 50581, EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/ CSA-C22.2 No. 60950-1-07, IEC 62471, EN 55032 (Class B), EN 55024, EN 61000-3-2, EN 61000-3-3, 47 CFR Part 15, Subpart B, Class B, ICES-003 Issue 6, Class B |
| Buzzer | Yes |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Light levels (direct sunlight) | 0 - 107600 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
