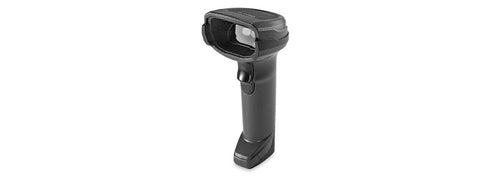

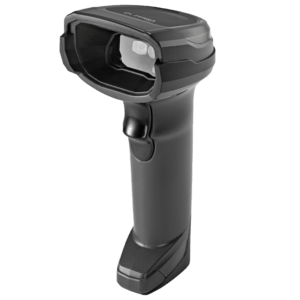

Zebra DS8178 Handheld bar code reader 1D/2D Photo diode Black

DS8178 Cordless 1D/2D Handheld Imager, Standard Cradle Kit, 1280 x 960 pixels, Circular 617nm Amber LED, Bluetooth 4.0 BLE, IP42, Twilight Black

Description

The ultimate in performance, innovation and manageability

The checkout stand is the last chance you have to leave shoppers with a good impression. The quality of the checkout experience is heavily dependent upon the performance of the scanner you choose. Now, you can leave every shopper with the ultimate last impression with the DS8100 Series handheld imager.

The DS8100 Series rises above conventional imagers to deliver unprecedented scanning performance on virtually every 1D and 2D barcode, keeping your checkout lines moving and your cashiers free to deliver a more personal checkout experience. The DS8100 Series — because when it comes to the checkout experience in your store, only the best will do.

Unprecedented performance

Only the DS8100 Series combines the power of an 800 MHz microprocessor, a high-resolution megapixel sensor and Zebra’s exclusive PRZM technology. With this unique combination of hardware and advanced algorithms, the DS8100 Series instantly captures the most problematic barcodes with lightning speed, including dense, poorly printed, crinkled, faded, distorted, dirty or damaged barcodes and electronic barcodes on smartphones — even when the screen is dimly lit.

Innovation beyond the barcode

A wide range of innovations allows workers to do much more than scan barcodes one at a time. Workers can simultaneously capture multiple barcodes and transmit only those required in the proper directly to your application. Only the DS8100 Series can capture the information on a full 8.5 x 11 or A4 page, process the desired information into the right format for electronic storage and transmit the data to your applications — all with one press of the trigger. And support for Digimarc*© barcodes provides future-proofing, ensuring that the DS8100 Series you deploy today can support the barcodes of tomorrow.

Unrivaled manageability

Our complimentary tools deliver unrivaled manageability. With visionary visibility into scanning performance and battery metrics, you can spot and correct issues before they impact device uptime, worker productivity and the quality of your customer service. You can control many aspects of your scanners from any Android, iOS and Windows smartphone or tablet, as well as any iOS or Windows PC. You can create a single configuration barcode to customize settings. And you can stage, configure and update firmware on all your DS8100 devices in all of your locations — no user actions required.

Specifications

Scanning
Type	Handheld bar code reader
Optical sensor resolution	1280 pixels
Yaw reading angle	0 - 60°
Working distance	61 cm
Wavelength	617 nm
Tilt reading angle	0 - 360°
Sensor type	Photo diode
Scanner type	1D/2D
Pitch reading angle	0 - 60°
Ports & interfaces
PC connection	RS-232/USB
Wireless range	100 m
Connectivity technology	Wired & Wireless
Bluetooth version	4.0
Standard interfaces	USB, RS-232, Bluetooth
Performance
International Protection (IP) code	IP42
Product colour	Black
Design
Type	Handheld bar code reader
International Protection (IP) code	IP42
Product colour	Black
Power
Power source type	Battery
Battery life	83 h
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	2500 mAh
Weight & dimensions
Width	66 mm
Depth	107 mm
Height	168 mm
Weight	235.3 g
Technical details
Type	Handheld bar code reader
International Protection (IP) code	IP42
Product colour	Black
PC connection	RS-232/USB
Harmonized System (HS) code	84716070
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Logistics data
Harmonized System (HS) code	84716070
