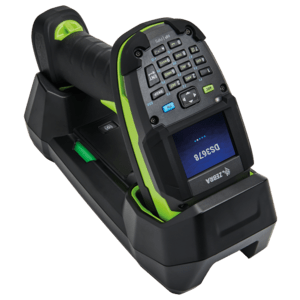

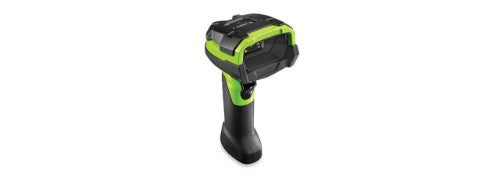

Zebra DS3678-HD Handheld bar code reader 1D/2D Laser Black, Green
MPN:
Condition:
Couldn't load pickup availability
Description
UNSTOPPABLE PERFORMANCE FOR HIGH DENSITY 1D/2D BARCODESAs a member of the Zebra Ultra-Rugged 3600 Series of scanners, the practically indestructible 1D/2D DS3608-HD corded and DS3678-HD cordless scanner is ready for one of the world’s toughest environments — the electronics manufacturing production line.
You get the truly unstoppable performance you need to prevent the high cost of unplanned production line downtime. Your workers get first-time every time capture of the many types of small and high-density barcodes printed on the components in the products you make.
And since these scanners also capture standard barcodes in virtually any condition, you get a real value — unstoppable performance in a single flexible device that can meet scanning needs from the assembly line to the warehouse.
SUPERIOR PERFORMANCE
You get the ultimate in scanning performance — period. Your workers can capture virtually any high-density and standard 1D or 2D barcode at lightning speed, regardless of whether it is printed on a paper label or directly on a product component. Even if barcodes are damaged, dirty or poorly printed, no problem — this intelligent scanner can handle it all.
ULTRA-RUGGED DESIGN
The warehouse and manufacturing plant floor is as tough as its gets. That’s why we created a new product category — the ultra-rugged scanner. The corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.
UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution | 1280 pixels |
| Yaw reading angle | -45 - 45° |
| Wavelength | 655 nm |
| Tilt reading angle | -65 - 65° |
| Sensor type | Laser |
| Scanner type | 1D/2D |
| Pitch reading angle | -65 - 65° |
| Ports & interfaces | |
| Wireless range | 100 m |
| Connectivity technology | Wired & Wireless |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Ethernet LAN | Yes |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Performance | |
| Programming function | Yes |
| Protection features | Dust resistant, Shock resistant, Water resistant |
| LED indicators | Yes |
| International Protection (IP) code | IP67 |
| Product colour | Black, Green |
| Design | |
| Type | Handheld bar code reader |
| Protection features | Dust resistant, Shock resistant, Water resistant |
| LED indicators | Yes |
| International Protection (IP) code | IP67 |
| Product colour | Black, Green |
| Power | |
| Power source type | Battery |
| Number of reads per charge | 100000 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3100 mAh |
| Weight & dimensions | |
| Width | 142 mm |
| Depth | 76 mm |
| Height | 185 mm |
| Weight | 411 g |
| Technical details | |
| Type | Handheld bar code reader |
| Protection features | Dust resistant, Shock resistant, Water resistant |
| LED indicators | Yes |
| International Protection (IP) code | IP67 |
| Product colour | Black, Green |
| Programming function | Yes |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Network | |
| Ethernet LAN | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
