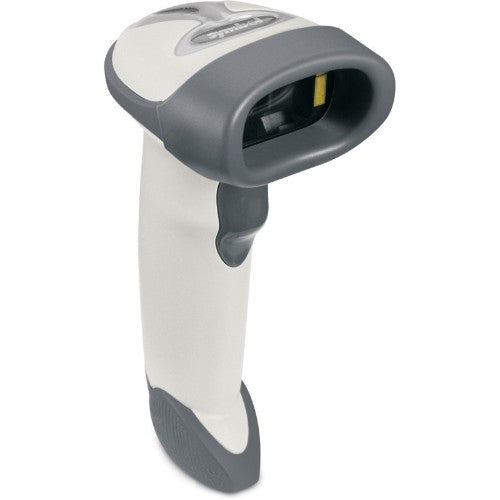

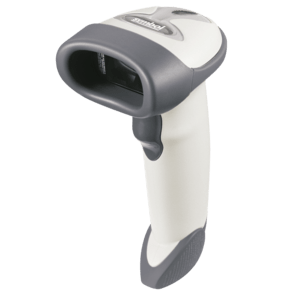

Motorola LS2208 Laser White
MPN:
Condition:
Couldn't load pickup availability
Description
The affordable LS2208 handheld bar code scanner provides fast, reliable scanning in an ergonomic, lightweight form. The wide working range —from near-contact to 17 inches — makes this device ideal for retail, hospital, education or government settings. Multiple on-board interfaces ensure integration with a variety of host systemsDurable, single-board construction
Meets stringent 5-ft drop tests.
Scratch-resistant tempered glass exit window
Is designed for continuous use.
Accurate first-time capture of 1D bar codes
Increased productivity, resulting in shorter check-out lines and better customer service.
Wide working range
Delivers optimal performance from contact to 17 in (43 cm).
Multiple on-board interfaces
Simplify installation and integration and ensures future compatibility.
Plug-and-play, with universal cable
Means rapid deployment, with a single cable connecting to any computing environment.
Intuitive design
Minimizes setup and training time.
Ergonomic, lightweight design
Reduces user fatigue with sleek, balanced form for maximum comfort and productivity.
Hands-free Intellistand
Enables presentation scanning and easy switching between hands-free and handheld modes.
Advanced Data Formatting (ADF)
Enables users to modify data prior to sending to host computer, reducing costly modifications to the host software.
Specifications
| Scanning | |
|---|---|
| Yaw reading angle | -60 - 60° |
| Tilt reading angle | -30 - 30° |
| Sensor type | Laser |
| Scan speed | 100 sec/page |
| Pitch reading angle | -65 - 65° |
| Decoding standards | UPC/EAN UPC/EAN + Supplementals UCC/EAN 128 Code 39 Code 39 Full ASCII Code 39 TriOptic Code 128 Code 128 Full ASCII Codabar Interleaved 2/5 Discrete 2/5 Code 93 MSI Code 11 IATA GS1 DataBar Chinese 2/5 |
| Ports & interfaces | |
| Standard interfaces | USB |
| Performance | |
| Product colour | White |
| Design | |
| Product colour | White |
| Power | |
| Power consumption | 130 mA |
| Input voltage | 5 V |
| Weight & dimensions | |
| Weight | 146 g |
| Technical details | |
| Safety | UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1 |
| Light source | 650nm |
| Dimensions (WxDxH) | 63 x 84 x 152 mm |
| Product colour | White |
| Electromagnetic emissions | FCC Part 15 Class B, ICES 003 Class B |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Other features | |
| Safety | UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1 |
| Light source | 650nm |
| Dimensions (WxDxH) | 63 x 84 x 152 mm |
| Electromagnetic emissions | FCC Part 15 Class B, ICES 003 Class B |
