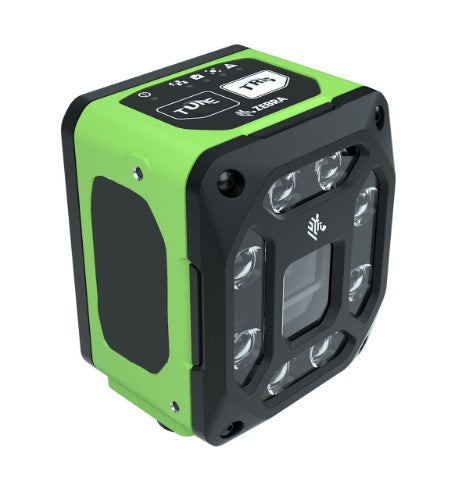

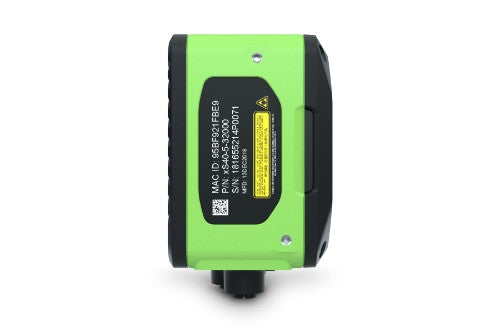

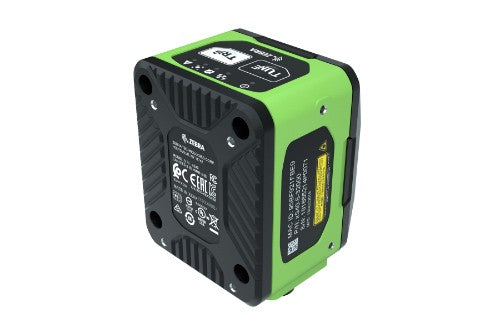

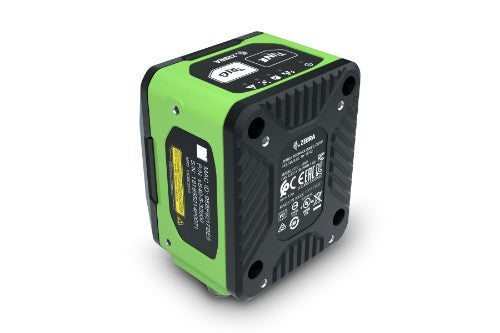

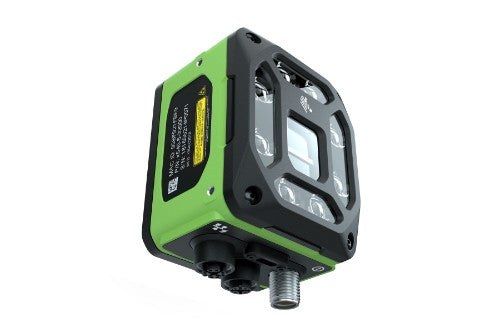

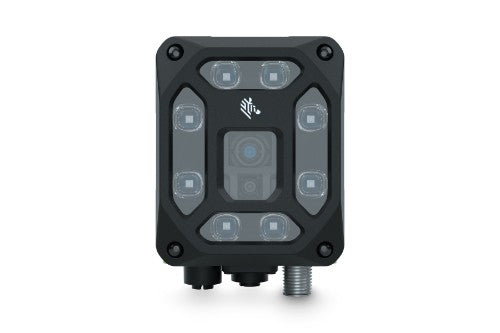

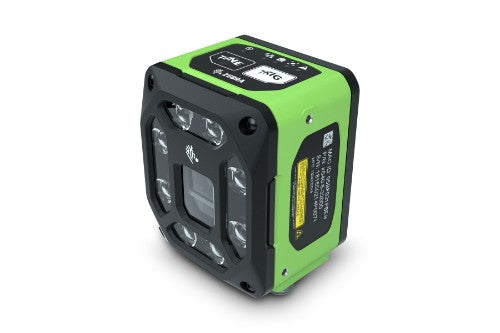

Zebra FS42 Fixed bar code reader 1D/2D CMOS Black, Green
MPN:
Condition:
Couldn't load pickup availability
Description
FS42 Fixed Industrial ScannerBuilt for High-Speed Data Capture and Deep Learning Applications
Building off the all-around performance and flexibility of the FS40, the FS42 is optimized for resource-intensive tasks like deep learning-based OCR applications and high-speed scanning when speed is paramount. With increased on-board memory and a neural processing unit (NPU) for accelerated data processing, the FS42 also offers a seamless upgrade path to more complex machine vision applications.
Powerful Scanning Performance
From fast moving conveyors and scan tunnels to forklift and dock door scanning, the FS42 delivers outstanding performance and versatility for demanding scanning applications. Get first-time every time capture of 1D/2D barcodes and direct part marks with PRZM Intelligent Imaging.
Scalable Automation Options
Purpose-built with a powerful new processor and increased on-board memory, the FS42 supports ever-more challenging machine vision applications that demand significant processing power. This device lets you confidently power applications today and be ready to meet future requirements.
Deep-Learning-Driven Performance Enhancements
The FS42 excels at applications like deep-learning-based OCR (DL-OCR), thanks to its enhanced processing powers. Upgrading its software license further enables advanced machine vision applications such as anomaly detection, marking a significant performance leap in industrial automation.
Specifications
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 39, Code 93, MSI-Plessey, Plessey, Standard 2 of 5 |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Dot Code A, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Sensor type | CMOS |
| Scanner type | 1D/2D |
| Read rate (max) | 60 reads/s |
| Optical sensor resolution (W x H) | 1920 x 1200 pixels |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Standard interfaces | USB |
| Performance | |
| LED indicators | Yes |
| International Protection (IP) code | IP65, IP67 |
| Product colour | Black, Green |
| Design | |
| Type | Fixed bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP65, IP67 |
| Product colour | Black, Green |
| Power | |
| Power source type | PoE, USB |
| Weight & dimensions | |
| Width | 64 mm |
| Depth | 91.4 mm |
| Height | 54 mm |
| Weight | 400 g |
| Technical details | |
| Type | Fixed bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP65, IP67 |
| Product colour | Black, Green |
| Packaging data | |
| External power adapter | Yes |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |
| External power adapter | Yes |
Zebra FS42 Fixed bar code reader 1D/2D CMOS Black, Green
