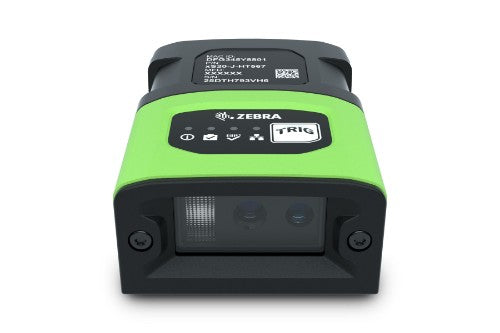

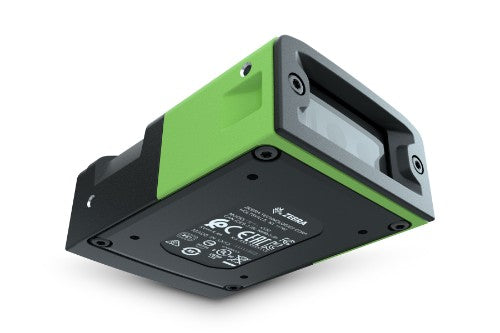

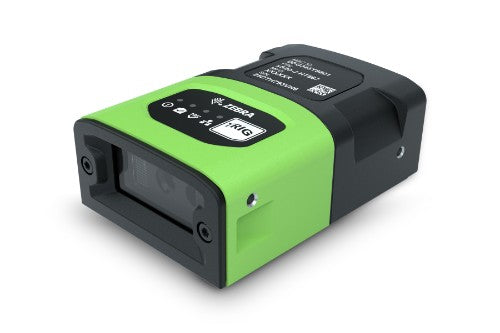

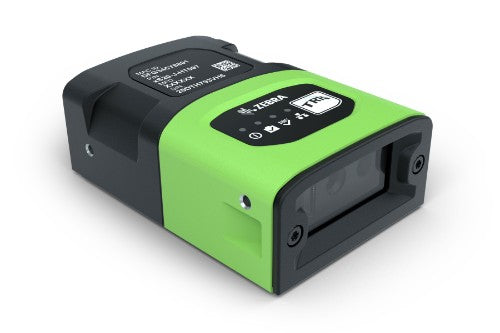

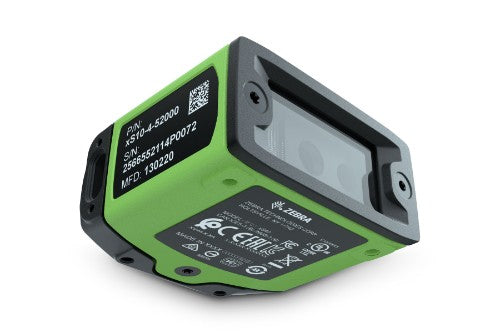

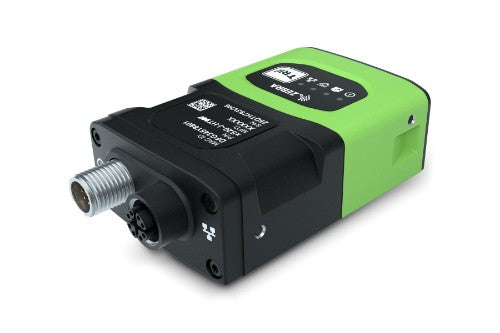

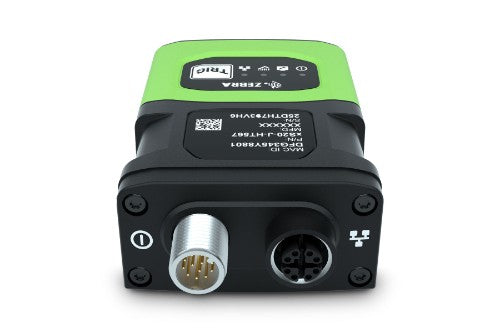

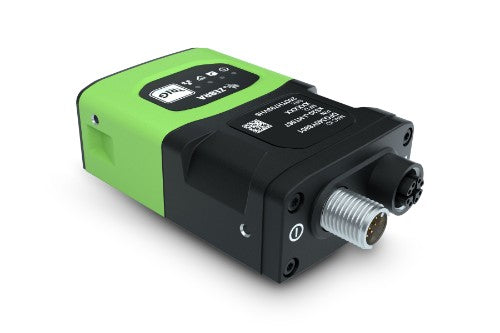

Zebra FS20-SR10F3-2C00W barcode reader Fixed bar code reader 1D/2D CMOS Black, Green
MPN:
Condition:
Couldn't load pickup availability
Description
Easily integrate high quality scanning into your networkThe increasing demands of international commerce and its global supply chain are pressuring companies to deliver more — and to do it faster. From manufacturing to logistics to the end customer, success is driven by the ability to quickly move and track the products that drive your business.
Address it all with the compact Zebra FS20 Fixed Industrial Scanner.1 With the FS20, it’s easy to track and trace every item as it moves through production, storage and fulfillment. Scan barcodes on components moving through your assembly line to ensure the right part is used at the right time — and enable rapid targeted recalls of products that contain defective parts. Scan barcodes on items as they are placed on warehouse shelves to provide visibility into real time inventory. And scan barcodes when fulfilling orders to ensure the right items are sent to the right customer. Whatever you want to track and trace, the FS20 makes it easy.
Specifications
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| Linear (1D) barcodes supported | Code 93, Codabar, Code 128, MSI-Plessey, U.P.C., Code 39 |
| 2D (matrix & stacked) barcodes supported | Aztec Code, PDF417, Data Matrix, QR Code, Dot Code A, MaxiCode, Micro QR Code, MicroPDF417 |
| Sensor type | CMOS |
| Scanner type | 1D/2D |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Horizontal field of view | 35° |
| Vertical field of view | 26° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Standard interfaces | RJ-45, RS-232 |
| Performance | |
| Protection features | Vibration proof, Shock resistant |
| LED indicators | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP65, IP67 |
| Product colour | Black, Green |
| Design | |
| Type | Fixed bar code reader |
| Protection features | Vibration proof, Shock resistant |
| LED indicators | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP65, IP67 |
| Product colour | Black, Green |
| Power | |
| Power consumption | 313 mA |
| Power source type | DC, PoE |
| Power consumption (typical) | 7.5 W |
| Input voltage | 10 - 30 V |
| Weight & dimensions | |
| Width | 54.6 mm |
| Depth | 94.2 mm |
| Height | 28.3 mm |
| Weight | 195 g |
| Technical details | |
| Type | Fixed bar code reader |
| Protection features | Vibration proof, Shock resistant |
| LED indicators | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP65, IP67 |
| Product colour | Black, Green |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 90% |
