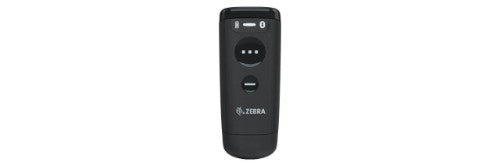

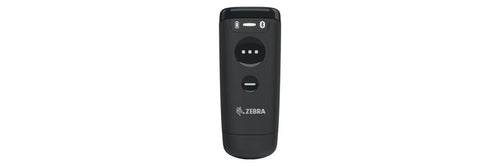

Zebra CS60 Handheld bar code reader 1D/2D LED Black
MPN:
Condition:
Couldn't load pickup availability
Description
ULTRA-VERSATILE WITH A FIRST-OF-ITS-KIND CONVERTIBLE DESIGNThe ultra-versatile CS60 Series Companion Scanner adapts to any workflow. Its groundbreaking design easily converts between corded and cordless operation, handheld and hands-free, as your needs change for superior investment protection.
ADAPTS TO ANY WORKFLOW

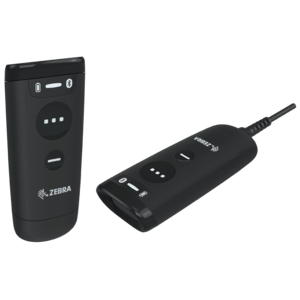

As a cordless companion scanner, the CS60 is small enough to tuck in a pocket or wear on a lanyard. And as a corded scanner, the CS60 offers compact handheld or hands-free scanning for the checkout counter, self-service kiosk and more. Whether you purchase a corded or cordless model up front, you can change modes at any time.
CUTTING-EDGE MOBILITY
With Qi inductive charging, split-second NFC tap-to-pair, Bluetooth 5.0 with Wi-Fi friendly mode, an 18-hour battery and Virtual Tether anti-loss functionality, the cordless CS60 is pocketable and wearable when mobility is essential.
EASY TO CONFIGURE AND MANAGE
DataCapture DNA is a unique collection of value-add tools that make it easier to deploy, update, troubleshoot, manage and develop applications for your business.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Yaw reading angle | 0 - 360° |
| Wavelength | 525 nm |
| Tilt reading angle | -60 - 60° |
| Sensor type | LED |
| Scanner type | 1D/2D |
| Pitch reading angle | -60 - 60° |
| Light levels (direct sunlight) | 0 - 108000 lx |
| Optical sensor resolution (W x H) | 1280 x 960 pixels |
| Ports & interfaces | |
| Wireless range | 100 m |
| Connectivity technology | Wireless |
| Bluetooth version | 5.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Standard interfaces | Bluetooth, USB |
| Performance | |
| LED indicators | Yes |
| International Protection (IP) code | IP65 |
| Product colour | Black |
| Light levels (direct sunlight) | 0 - 108000 lx |
| Design | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP65 |
| Product colour | Black |
| Power | |
| Power consumption | 400 mA |
| Power source type | AC, Battery, DC, USB |
| Battery life | 18 h |
| Charging time | 6 h |
| Number of reads per charge | 13000 |
| Battery type | Built-in battery |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity | 735 mAh |
| Weight & dimensions | |
| Width | 46 mm |
| Depth | 109 mm |
| Height | 23 mm |
| Weight | 83 g |
| Technical details | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP65 |
| Product colour | Black |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Light levels (direct sunlight) | 0 - 108000 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
