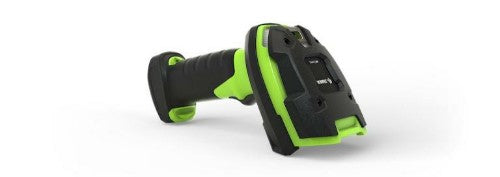

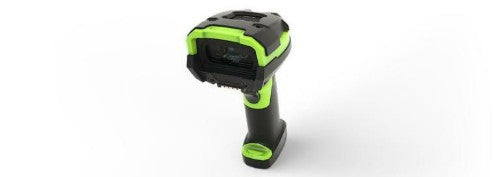

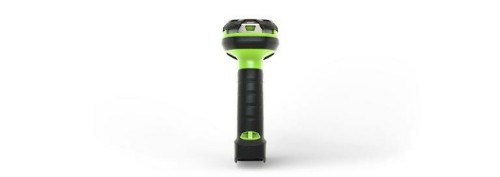

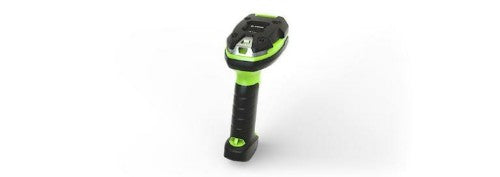

Zebra LI3678-ER Handheld bar code reader 1D Black, Green
MPN:
Condition:
Couldn't load pickup availability
Description
UNSTOPPABLE PERFORMANCE FOR EXTENDED-RANGE 1D BARCODE CAPTURE"As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-ER corded and DS3678-ER cordless scanners are ready for one of the world’s toughest environments — the warehouse." Designed to capture virtually any 1D barcode from as close as 2 in./5,1 cm to as far as 56 ft./17,1 m away, these scanners provide the ultimate in versatility — workers can capture codes in hand as well as on the top of your warehouse racks. And these scanners are loaded with features that deliver truly unstoppable performance, redefining reliability and management simplicity to drive throughput, accuracy and customer service to a new level.
In addition to superior scanning performance, an ultra-rugged design and unparalleled manageability, you get more features that make this scanner easier than ever for your workers to use, including the crispest aiming pattern for first-time accurate capture of barcodes on pick lists; mix-and-match feedback modes so workers can see, hear or feel successful scans; an extreme temperature rating for freezer use and more. And Zebra’s Network Connect for Automation delivers a seamless connection between LI3608-ER/LI3678-ER scanners and your Industrial Ethernet network without additional third party equipment, reducing complexity, and eliminating a point of failure.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, MSI |
| Working distance | 17.1 m |
| Wavelength | 655 nm |
| Scanner type | 1D |
| Pitch reading angle | -65 - 65° |
| Light levels (direct sunlight) | 0 - 107639 lx |
| Ports & interfaces | |
| Data transfer rate | 3 Mbit/s |
| Wireless range | 100 m |
| Connectivity technology | Wired & Wireless |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Standard interfaces | Keyboard wedge, RS-232, USB |
| Performance | |
| Programming function | Yes |
| Protection features | Dust resistant, Water resistant |
| LED indicators | Yes |
| International Protection (IP) code | IP65, IP67 |
| Product colour | Black, Green |
| Buzzer | Yes |
| Light levels (direct sunlight) | 0 - 107639 lx |
| Design | |
| Type | Handheld bar code reader |
| Protection features | Dust resistant, Water resistant |
| LED indicators | Yes |
| International Protection (IP) code | IP65, IP67 |
| Product colour | Black, Green |
| Power | |
| Power source type | USB |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3100 mAh |
| Weight & dimensions | |
| Width | 76 mm |
| Depth | 132 mm |
| Height | 185 mm |
| Weight | 327 g |
| Technical details | |
| Type | Handheld bar code reader |
| Protection features | Dust resistant, Water resistant |
| LED indicators | Yes |
| International Protection (IP) code | IP65, IP67 |
| Product colour | Black, Green |
| Buzzer | Yes |
| Programming function | Yes |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Light levels (direct sunlight) | 0 - 107639 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
